R Series Surface Grinder

R031

R031 Series Surface Grinder Photo

Application Example(s): Cage, Spacer


Industry: Automotive


Grinding Capacity: Grinding capacity up to Ø100mm

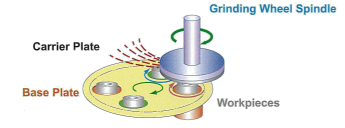

Description: Single disc grinder capable of self-rotation of part during grinding. Reduced thermal distortion of part.

R031 Images

R421

R421 Series Surface Grinder Photo

Application Example(s): Spacer, Wafer


Industry: Automotive, Information Technology


Grinding Capacity: Grinding capacity up to Ø100mm

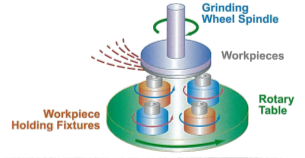

Description: Single disc grinder capable of achieving mirror like finish on small parts without excessive lapping. Optional full automation and vacuum chucking of the part.

R421 Image

R422

R422 Series Surface Grinder Photo

Application Example(s): Spacer, Wafer


Industry: Automotive, Information Technology


Grinding Capacity: Grinding capacity up to Ø100mm


Description: Dual spindles for side by side single-disc grinding.  Mirror-like finish on small parts without excessive lapping. Optional full automation and vacuum chucking of the part.

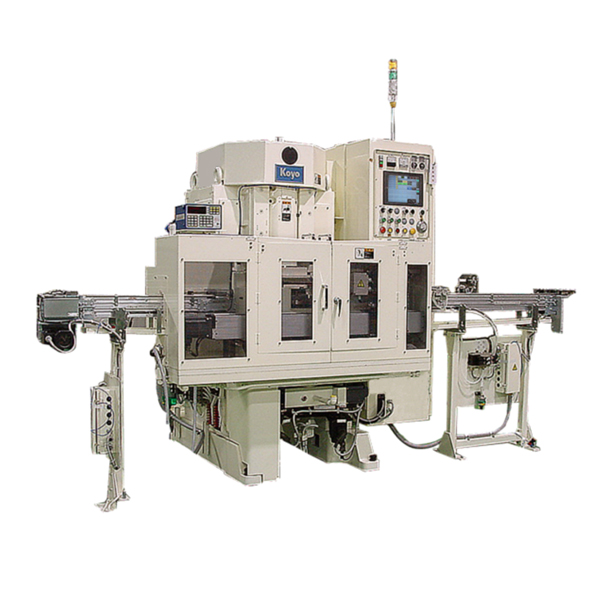

R431

R431 Series Surface Grinder Photo

Application Example(s): Inner Ring, VVT Housing, VCT Rotor, VTC Sprockets, Stator, Inner Plate, Housing, Gear, Ring Ball Ramp, Stops & Spacers, Pump Body


Industry: Automotive, Pump


Grinding Capacity: Grinding capacity up to Ø100mm

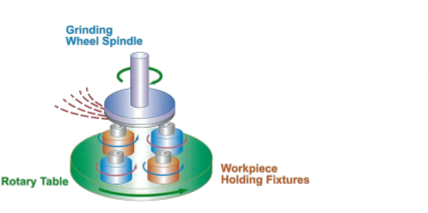

Description: Single disc grinder with the ability to grind two parts at a time. Indexing table with 2-4 jigs.

R431 Image

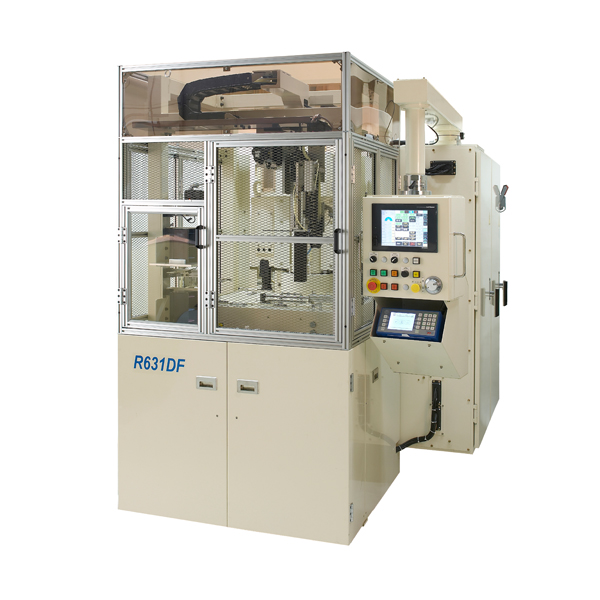

R631

R631 Series Surface Grinder Photo

Application Example(s): Rotor, Wafer, Stator, Housing, Inner Plate, Ring Ball Ramp, Stops & Spacers, Inner Ring, Gear


Industry: Automotive, Information Technology


Grinding Capacity: Grinding capacity up to Ø125mm

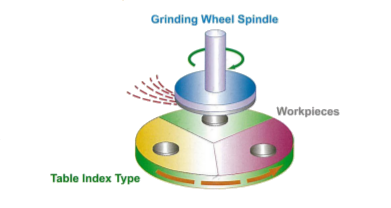

Description: Single disc grinder with indexing table capable of loading/unloading while grinding after indexing.

R631 Image

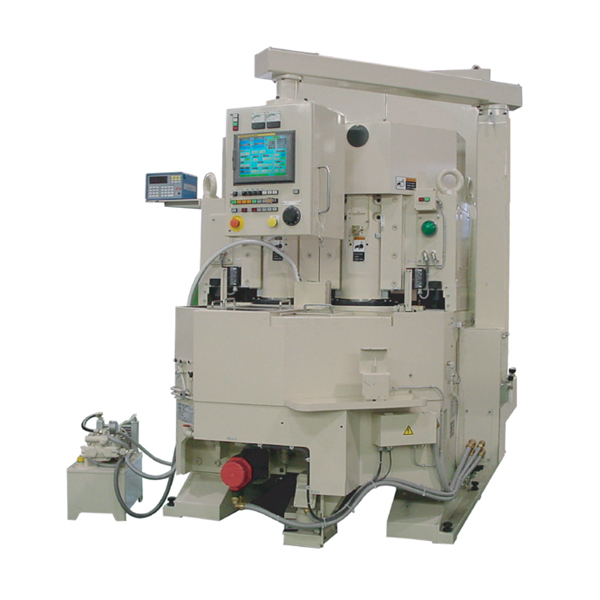

R632

R632 Series Surface Grinder Photo

Application Example(s): Wafers, Stator, Housing, Inner Plate, Ring Ball Ramp, Stops & Spacers, Inner Ring, Gear, Rotor, Vane Housing, VCP Stator, Sprocket Housing


Industry: Automotive, Information Technology


Grinding Capacity: Grinding capacity up to Ø125mm


Description: Dual spindles for side by side double-disc grinding. Capable of rough and finish grinding to achieve high accuracy and mirror-like finishes.

R632 Image

RV2

RV2 Series Surface Grinder Photo

Application Example(s): Connecting Rod


Industry: Automotive


Grinding Capacity: Grinding wheel Ø455 x 125mm

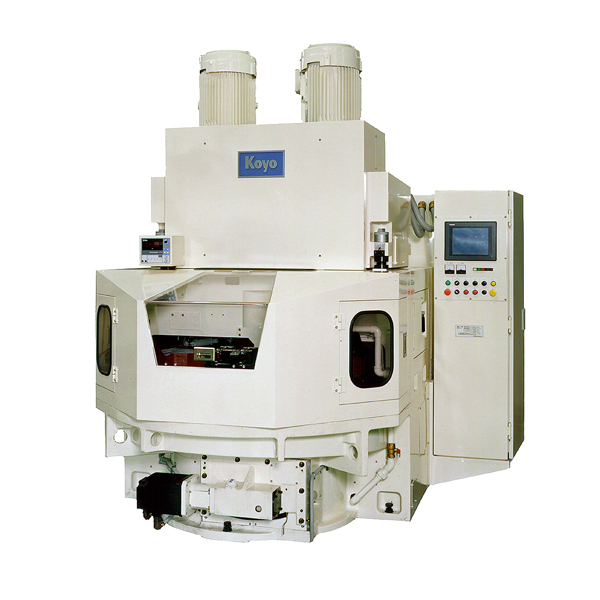

Description: Side by side double-disc grinder ideal for grinding larger parts. Indexing table and loader are synchronized for continuous full automation and high productivity.

RV2 Image

PVT2

PVT2 Series Surface Grinder Photo

Application Example(s): V-6 Engine Block


Industry: Automotive


Grinding Capacity: Grinding capacity up to Ø600mm


Description: Slanted surface grinder ideal for V-6 engine block.
