KVD Series Surface Grinders

KVD Series Grinding Machines offer various types of feed styles to accommodate your production and tolerance needs.

Image of S System KVD Series Grinding Machines
Image of C System KVD Series Grinding Machines



Image of W System KVD Series Grinding Machines
Image of T System KVD Series Grinding Machines
Image of C System KVD Series Grinding Machines



KVD200

KVD200 Series Surface Grinders Photo

Application Example(s): Miniature Bearing Race


Industry: Bearing


Grinding Capacity: Grinding capacity up to Ø10mm, Maximum thickness up to 6mm


Description: Compact double disc surface grinder capable of high precision grinding for both faces of small parts.

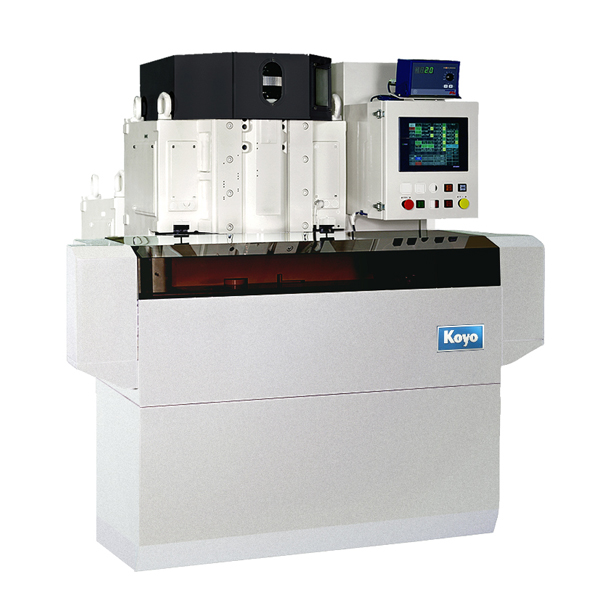

KVD300WII

KVD300WII Series Surface Grinders Photo

Application Example(s): Oil Pump, Cam Lobe, Vane, Washers, Vane Rotor, Impeller, Spacers, Nuts & Doughnuts, Body, Rotor, Driven Sprocket, Gear, VTC Body, Flanged Bearing, Seal Ring, Cam Ring, VTC Sprockets, Pinion Gear


Industry: Pump, Automotive, Appliance


Grinding Capacity: Grinding capacity up to Ø50mm, Maximum thickness up to 50mm


Description: Compact double disc surface grinder well-suited for grinding difficult materials. Easy to incorporate automation and gauging systems.

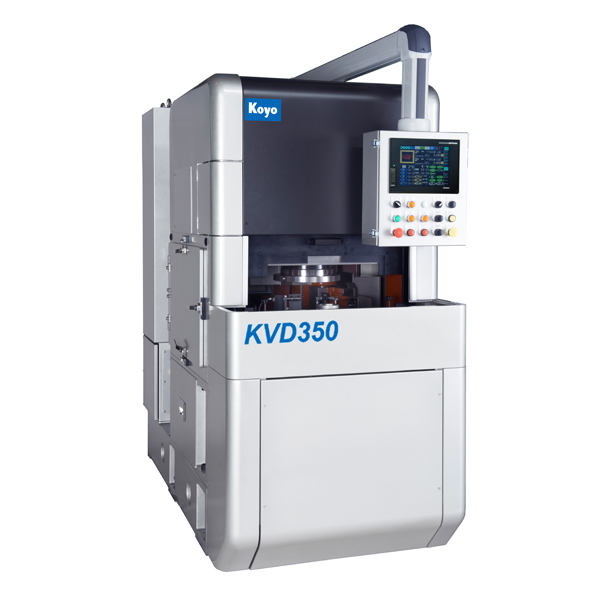

KVD350

KVD350 Series Surface Grinders Photo

Application Example(s): Diaphragm, Rotor, Plate, Control Valve


Industry: Automotive, Agriculture, Aerospace, Appliance


Grinding Capacity: Grinding capacity up to Ø150mm, Maximum thickness up to 50mm


Description: Double disc surface grinder ideal for high production grinding with reduced thermal distortion and reduced accumulation of sludge. Reduced machine width and ability to replace wheel and dresser form machine side. Easy operation and increased grinding capacity

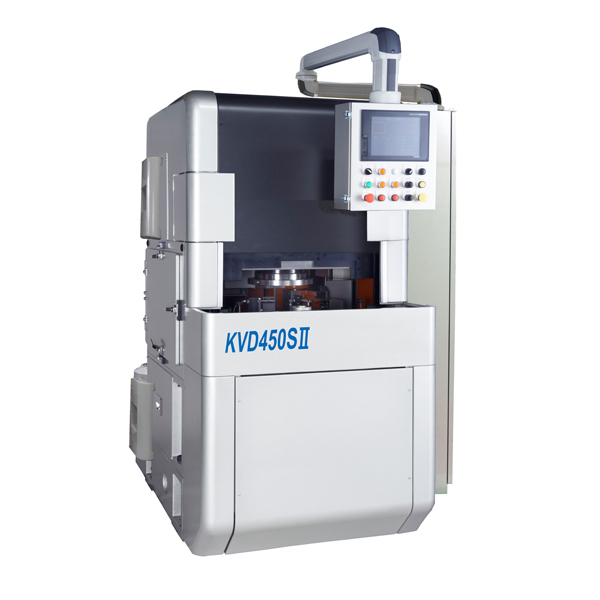

KVD450II

KVD450II Series Surface Grinders Photo

Application Example(s): Diaphragm, Rotor, Plate, Control Valve


Industry: Automotive, Agriculture, Aerospace, Appliance


Grinding Capacity: Grinding capacity up to Ø200mm, Maximum thickness up to 50mm


Description: Double disc surface grinder ideal for high production grinding with reduced thermal distortion and reduced accumulation of sludge. Reduced machine width and ability to replace wheel and dresser form machine side. Easy operation and increased grinding capacity

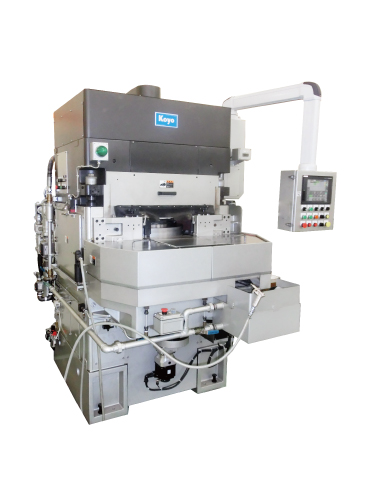

KVD580

KVD580 Series Surface Grinders Photo

Application Example(s): Housing, Rotor, Slide, Outer Plate, Shim Plate, Cover, Plate


Industry: Automotive, Agriculture, Aerospace, Appliance


Grinding Capacity: Grinding capacity up to Ø150mm, Maximum thickness up to 50mm


Description: Double disc surface grinder ideal for large parts. New spindle design features adjustable rigidity to minimize pinch-out and wheel wear. Wheel shape is easily programmed by a CNC dresser, automatic grinding set-up (including dress). Built in AE sensor for accurate dresser setup and dressing. Integrated sensor for automatic height setting between the lower wheel and base plate. Wheel and dresser replacement can be done from the machine side with a specially designed arm.

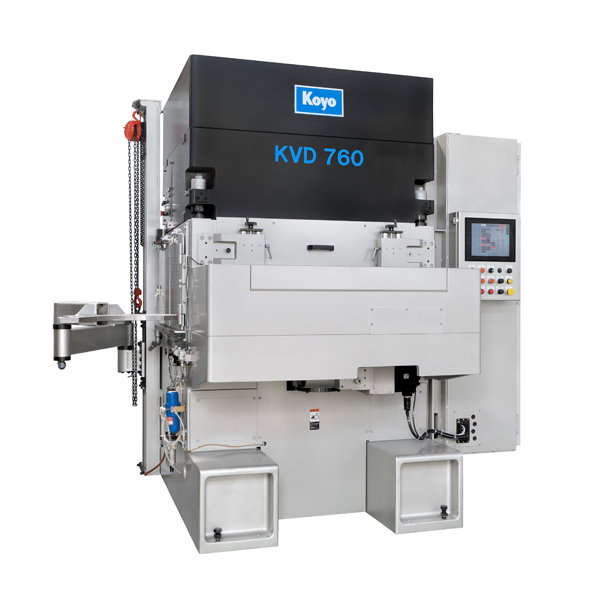

KVD760

KVD760 Series Surface Grinders Photo

Application Example(s): Connection Plate, Backing Plate, Clutch Plate


Industry: Automotive, Agriculture, Aerospace, Appliance


Grinding Capacity: Grinding capacity up to Ø220mm, Maximum thickness up to 50mm


Description: Double disc surface grinder ideal for large parts. New spindle design features adjustable rigidity to minimize pinch-out and wheel wear. Wheel shape is easily programmed by a CNC dresser, automatic grinding set-up (including dress). Built in AE sensor for accurate dresser setup and dressing. Integrated sensor for automatic height setting between the lower wheel and base plate. Wheel and dresser replacement can be done from the machine side with the specially designed arm.
