HD Series Surface Grinders

HD Series Grinding Machines offer various types of feed styles to accommodate your production and tolerance needs.

Rotary Carrier Method:Image of Rotary Carrier Method

Gun Feed Method:Image of Gun Feed Method

Series Through Feed:Image of Series Through Feed

Swing Arm Method:Image of Swing Arm Method

HD3

HD3 Series Surface Grinders Photo

Application Example(s): Pins, Rollers, Gears, Plates, Pendulum, Electrode, Sleeve Spacer


Industry: Automotive, Bearing, Construction


Grinding Capacity: Maximum thickness up to 25mm


Description: Compact horizontal double disc surface grinder suitable for CBN and diamond wheel applications.

HD5

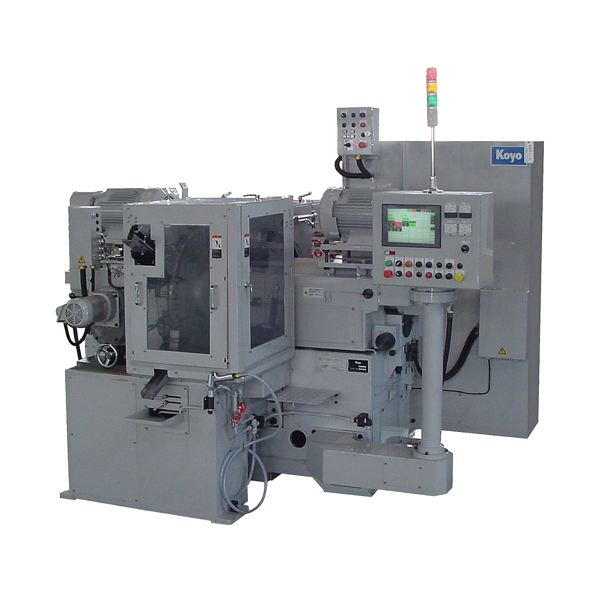

HD5 Series Surface Grinders Photo

Application Example(s): Piston, Roller, Pins, Disc Brake, Valve Spring Seat, Bearing Race, Gear


Industry: Automotive, Aerospace, Bearing, Construction


Grinding Capacity: Maximum thickness up to 130mm


Description: Horizontal double disc surface grinder capable of a wide range of grinding applications.

HD7

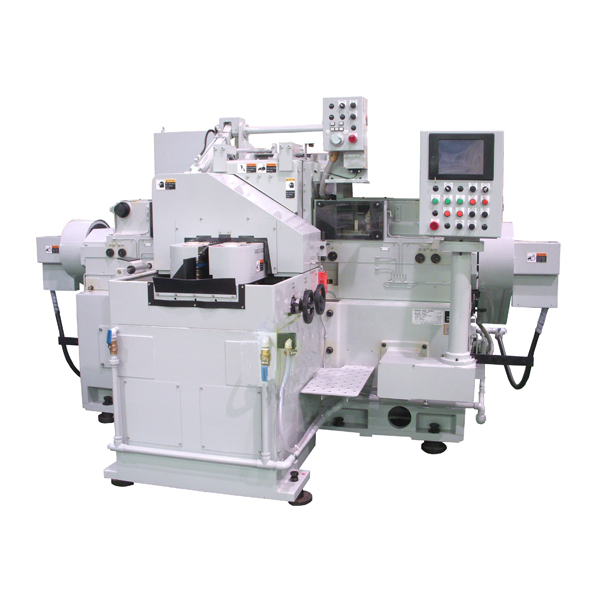

HD7 Series Surface Grinders Photo

Application Example(s): Connecting Rod, Bushing, Rear Cover, Plate


Industry: Automotive, Construction, Pump


Grinding Capacity: Maximum thickness up to 150mm


Description: Horizontal double disc surface grinder ideal for grinding large or heavy parts.

HD10

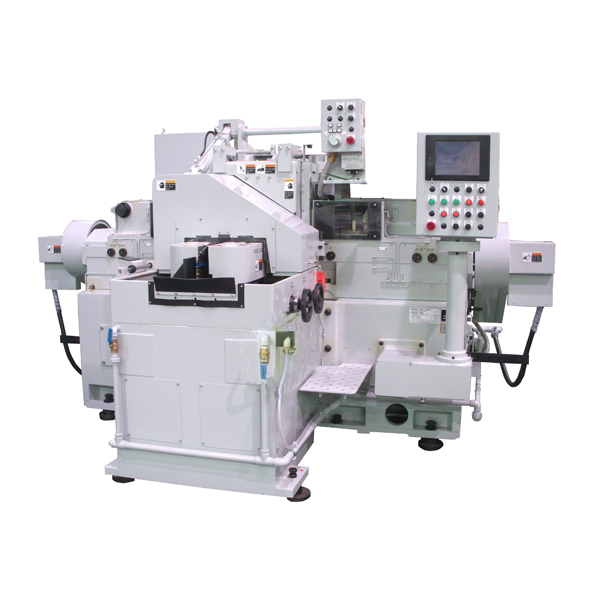

HD10 Series Surface Grinders Photo

Application Example(s): Bearing Race


Industry: Bearing


Grinding Capacity: Maximum thickness up to 180mm


Description: Horizontal double disc surface grinder ideal for grinding large or heavy parts.
