KC Series Centerless Grinders

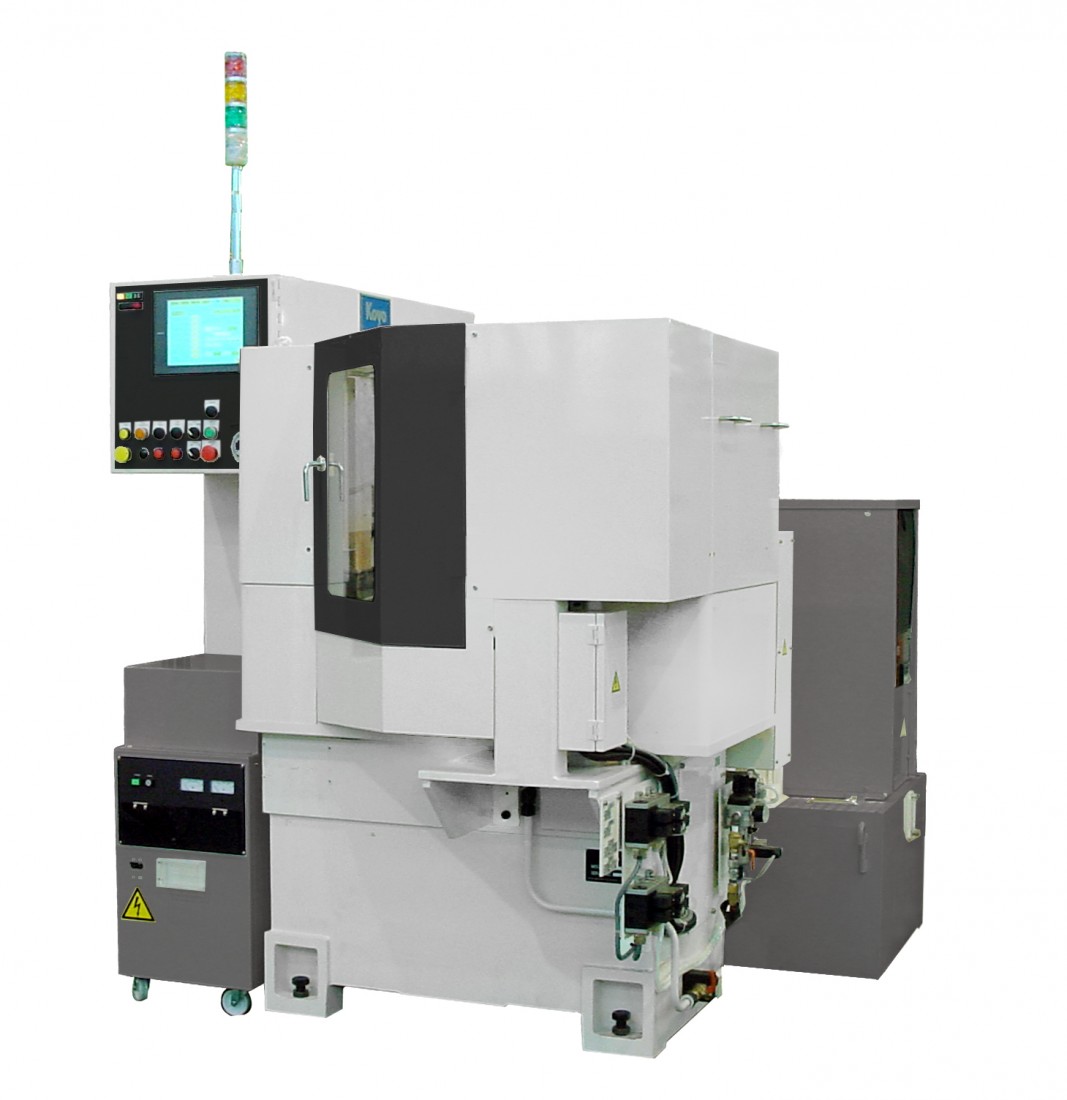

KCL50

Application Example(s): Pin, Adjusting Connector, Shaft


Industry: Automotive


Grinding Capacity: Grinding capacity Ø2mm - Ø5mm


Description: Compact centerless grinder capable of achieving sub-micron accuracy on very small diameter parts. Simultaneous grinding of O.D. and flange.

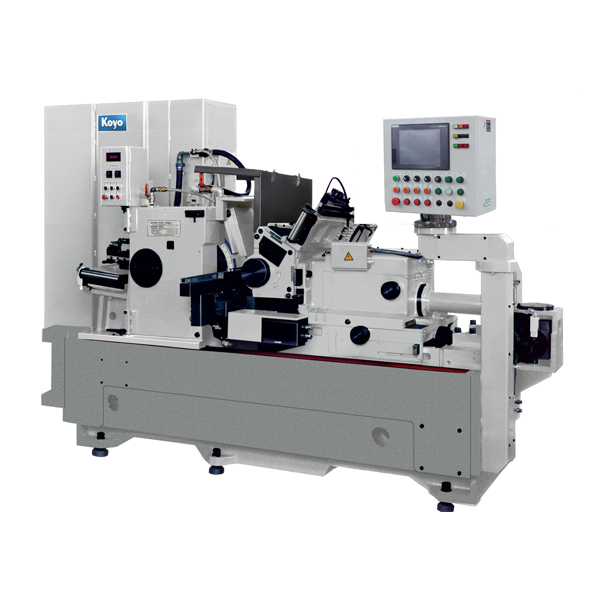

KC200

Application Example(s): Valve Spools, Compressor Shaft, Pin


Industry: Automotive, Appliances, Energy


Grinding Capacity: Grinding capacity Ø1.6 – Ø120mm Infeed work length maximum 200mm


Description: Centerless grinder with cantilever spindle design for easy change over of grinding wheel.

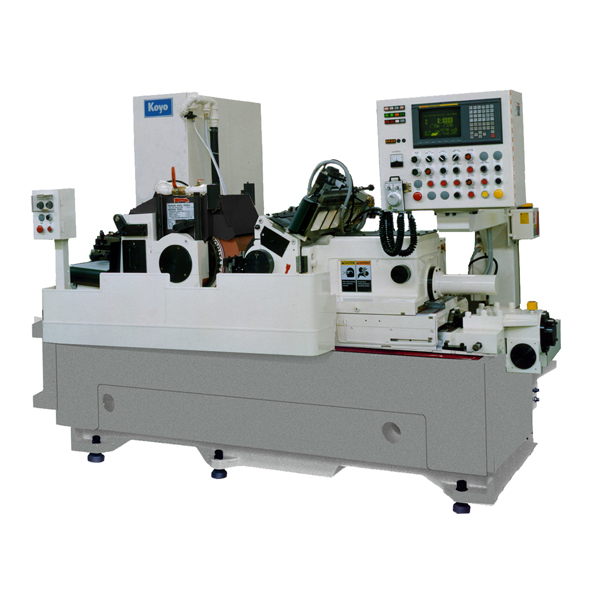

KC300

Application Example(s): Shaft, Roller, Tube, Rod, Piston Pin, Armature, Valve Guide, Outer Race, Bushing, Carbide Rod


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø1.6 – Ø120mm Infeed work length maximum 300mm


Description: Centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

KC400

Application Example(s): Valve Spool, Bearing


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø3 – Ø120mm Infeed work length maximum 400mm


Description: Centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

KC500

Application Example(s): Tube, Bearing, Camshaft, Piston Pin, Piston Rod, Input/Output Shaft


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø3 – Ø120mm Infeed work length maximum 505mm


Description: Medium-sized centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

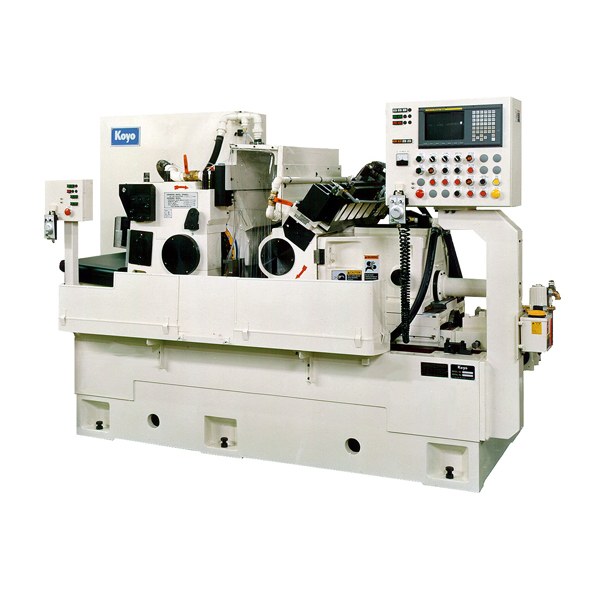

KC600

Application Example(s): Camshaft, Tube, Input/Output Shaft


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm Infeed work length maximum 605mm


Description: Medium-sized centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

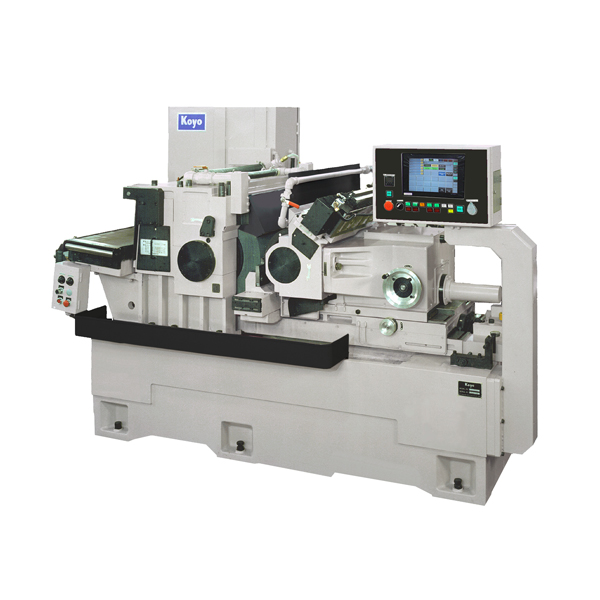

KC700

Application Example(s): Pin, Camshaft, Shaft


Industry: Automotive, Energy, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm Infeed work length maximum 705mm


Description: Centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

KC800

Application Example(s): Pin, Camshaft, Shaft


Industry: Automotive, Energy, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm Infeed work length maximum 805mm


Description: Centerless grinder with grinding wheel and regulating wheel spindles supported at both ends for high rigidity.

KC300A

Application Example(s): Differential Bevel Pinion, Shaft, Roller, Spark Plug Tube, Rod, Piston Pin, Armature, Valve Guide, Outer Race, Bushing, Carbide Rod


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø1.6 – Ø120mm


Description: Centerless grinder with slanted bed for high precision grinding of large diameter parts.

KC400A

Application Example(s): Valve Spool, Bearing


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø3.0 – Ø120mm


Description: Centerless grinder with slanted bed for high precision grinding of large diameter parts.

KC500A

Application Example(s): Plunger, Tube, Bearing, Camshaft, Piston Pin, Piston Rod, Input/Output Shaft, Pin


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø5.0 – Ø150mm


Description: Centerless grinder with slanted bed for high precision grinding of medium sized parts.

KC600A

Application Example(s): Camshaft, Tube, Input/Output Shaft


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm


Description: Centerless grinder with slanted bed for high precision grinding of medium sized parts.

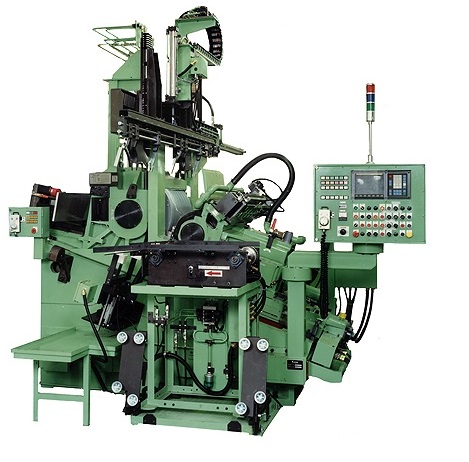

KC700A

Application Example(s): Pin, Camshaft, Shaft


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm Infeed work length maximum 705mm


Description: Centerless grinder with slanted bed for high precision grinding of long, heavy parts.

KC800A

Application Example(s): Pin, Camshaft, Shaft


Industry: Automotive, Appliances, Energy, Bearing, Construction


Grinding Capacity: Grinding capacity Ø5 – Ø150mm Infeed work length maximum 705mm


Description: Centerless grinder with slanted bed for high precision grinding of long, heavy parts.
